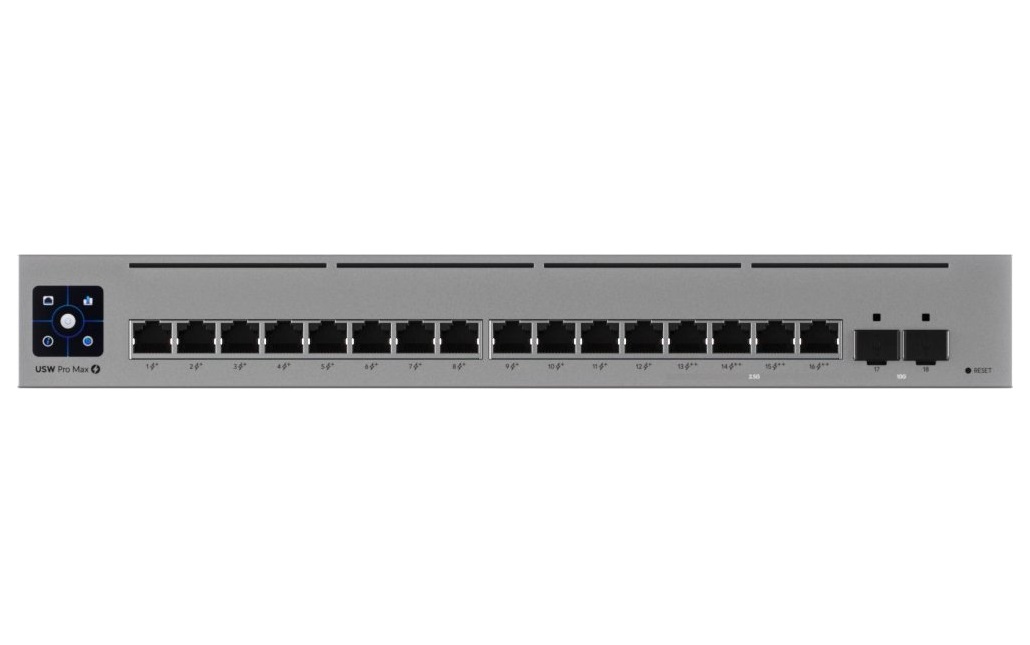

Ubiquiti Pro Max 16 PoE
ProductID
1237539
Vooraad
20 stuks extern
Merk
Ubiquiti
Categorie
Netwerk Switch
€ 419.50
| Netwerk | |
| Maximale snelheid | 2500 Mbit/s |
| Design | |
| Display | 1.3" Touchscreen |
| Etherlighting™ | Etherlighting-poorten die oplichten om de poortlocatie, snelheid/link en native VLAN/netwerk aan te geven |
| Beheerfuncties | |
| Switch type | Managed |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 16 |
| Type basis-switching RJ-45 Ethernet-poorten | 12x 1 Gbit/s 4x 2.5 Gbit/s |
| Aantal SFP+ poorten | 2 |
| Snelheid SFP+ poorten | 10 Gbit/s |
| Data-uitwisseling | |
| Switchingcapaciteit | 84 Gbit/s |
| Throughput | 42 Gbit/s |
| Packet forwarding rate (10 Mbps) | 62.496 Mpps |
| Geadvanceerde functies | |
| Level 2 functies | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Aantal Power over Ethernet plus (PoE +)-poorten | 12 |
| Voltagebereik Power over Ethernet (PoE) | 44-57V DC |
| Vermogen per poort Power over Ethernet (PoE) | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Totaal Power over Ethernet (PoE)-budget | 180 W |
| Aantal Power over Ethernet (PoE ++)-poorten | 4 |
| Gewicht en omvang | |
| Breedte | 325,1 mm |
| Diepte | 160 mm |
| Hoogte | 43,7 mm |
